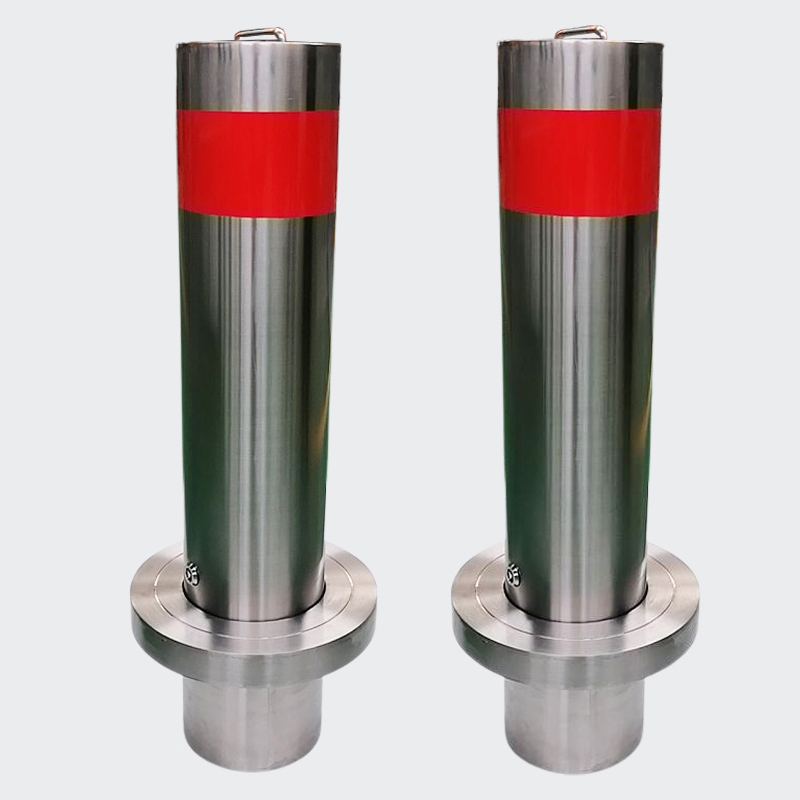

Lifting Bollard System - Anti-Collision Traffic Management
Dynamic and Intelligent Access Control
The Arlau RB09 is not a static barrier. It is an intelligent lifting bollard system that provides dynamic security, rising to block unauthorized vehicle access and lowering to permit authorized flow. This flexibility is essential for modern traffic control at sites with changing security needs throughout the day.
Robust Construction for Lasting Security
Built to perform, this bollard is constructed from durable 304 or 316 stainless steel, chosen for its strength and exceptional corrosion resistance. Its robust design ensures reliable operation as a formidable anti-collision bollard, protecting property and pedestrians from vehicle impacts.
A Tailored Security Solution
We understand that one size does not fit all. The RB09 is available in a range of standard and custom sizes (diameters from 76mm to 324mm and heights from 600mm to 1200mm). It can be equipped with features like warning stripes, LED lights, or custom logos to meet your specific project requirements for parking access control.
 |
 |
Key Product Features
Versatile Operation: Functions as an automatic bollard with retractable capabilities or can be operated manually, offering flexibility for different security protocols.
Premium Materials: Manufactured from 304/316/201 stainless steel, ensuring long-term durability and resistance to harsh outdoor conditions.
Secure Installation: Designed for embedded installation with a fixed base plate, providing a permanent and stable security bollard system.
High Visibility Options: Can be fitted with red reflective warning tape or LED lights to enhance visibility day and night.
Customizable Design: Offers OEM/ODM services for custom diameters, heights, and finishes, including custom top plate logos.
Core Advantages
Enhanced Security: The automatic rising post creates a reliable physical barrier that deters unauthorized vehicle entry, significantly improving site security.
Operational Flexibility: Allows you to control vehicle access remotely, perfect for managing deliveries, events, or varying security levels without permanent obstructions.
Low Maintenance: The stainless-steel construction and sealed hydraulic (for automatic versions) or mechanical components ensure reliable performance with minimal upkeep.
Professional Aesthetic: Provides a sleek, modern look that enhances the appearance of commercial entrances, public plazas, and institutional campuses.
Ideal Usage Scenarios
Commercial & Retail Security: Managing vehicle access at shopping mall entrances, retail park perimeters, and hotel driveways.
Pedestrian Zone Protection: Safeguarding public squares, sidewalk cafes, and pedestrianized streets from vehicle intrusion.
Institutional Access Control: Securing gates and perimeters at schools, universities, hospitals, and corporate campuses.
Parking Management: Controlling entry to reserved parking areas, VIP lots, or sensitive infrastructure zones.
 |
 |
Retractable Security Bollard - Manual , Automatic Access Control
1. What is the main difference between a fixed bollard and this automatic lifting bollard?
A fixed bollard is a permanent, immovable barrier. The Arlau RB09 lifting bollard is retractable, allowing you to lower it flush with the ground to permit authorized vehicle access and raise it to block traffic. This provides superior flexibility for sites that require occasional vehicle entry.
2. How is the bollard controlled? Can it be integrated with our existing access system?
The bollard can be operated via a dedicated control panel, remote control, or key switch. It is designed for integration and can be connected to wider security bollard systems, including card readers, license plate recognition, or central security software, depending on the configuration.
3. What happens to the bollard during a power outage?
A critical feature of a reliable automatic bollard is a manual override function. In the event of a power failure, authorized personnel can use a specialized key to manually lower or raise the bollard, ensuring emergency access is never compromised.
4. What kind of foundation is required for installation?
Installation requires a reinforced concrete foundation pit to house the bollard's mechanism when retracted. The specific dimensions and reinforcement details are provided in the installation guide. For parking access control projects, proper installation is key to long-term stability and performance.
5. Do you offer different sizes for specific project needs?
Yes. Arlau specializes in customization. While the standard model is Ø114x1000mm, we offer full OEM/ODM services. The bollard can be manufactured in custom diameters (76mm-324mm) and total heights (600mm-1200mm) to meet the exact specifications and load requirements of your project.
